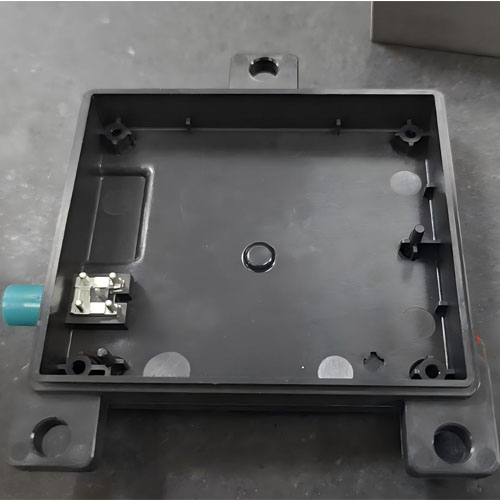

Real injection molded ECU housing sample with ribs and bosses, used to validate sink marks, gas traps, and assembly fit before production tooling.
Insert Molds

Magnet & Sensor Insert Molds | Precision Positioning | Jeancen Mold

Precision insert molds for magnets and sensor-related components. Locating accuracy, insert protection, and repeatable CTQ alignment are designed to prevent shift and assembly drift.

Contact Us

Magnet & Sensor Insert Molds

Precision positioning tooling for magnets and sensor-related inserts.
When inserts affect functionality (magnetic/sensor alignment), “close enough” is not acceptable. We design insert molds around positioning accuracy, protection, and repeatable CTQ stability.


Best Use Cases

  • Magnets, sensor carriers, functional alignment inserts
  • Components where insert drift changes performance
  • Programs needing stable assembly alignment over production runs


What We Control

  • Positive locating geometry for repeatable placement
  • Mechanical capture to prevent float/rotation
  • Part protection during ejection (no impact on critical zones)
  • Venting strategy around insert pockets
  • CTQ list + measurement checkpoints for validation


Typical Risks & Countermeasures

Insert rotation / micro-shift

Fix: anti-rotation features + hard stops + capture surfaces

Cosmetic/functional marks

Fix: mark-control ejection layout + protected contact zones

Long-run drift

Fix: wear planning + service-friendly access for maintenance
